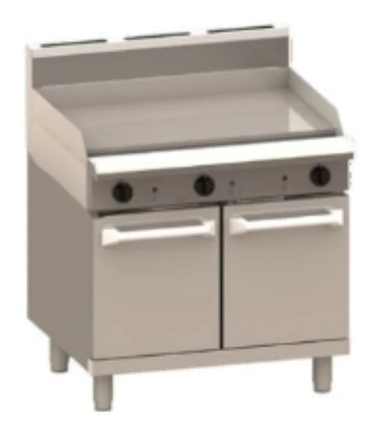

Luus RS 900mm Oven, with Hot Plate RS-9P

Our static ovens feature a thick mild steel sole plate to ensure even heat distribution, while nickel plated Italian made 28mj ARC open burners fitted with flame failure deliver performance and safety. The RS series is available in 600, 900 and 1200mm wide models and include multiple open burner, griddle and chargrill combinations. At only 800mm deep they are ideal for small spaced kitchens. 24 month ‘Platinum Warranty’

Open Burners

▪ Nickel plated cast iron 28 mj dual-flame ring burners
▪ Flame failure device standard
▪ Variable flame control valve with low flame setting
▪ Heavy duty cast iron trivets
▪ Pressed 0.7mm 304 stainless steel spillage bowls
Oven

▪ 29mj oven burner with mild steel sole plate
▪ Oven flame failure, pilot & piezo ignition as standard
▪ 100-340° C thermostat control
▪ Internal cooking space: 740mm x 550mm x 300mm H
▪ Vitreous enamel 1.5mm internal oven door/wall lining
▪ Fibertex Rockwool insulation in oven walls & doors
▪ French (swing) doors for easy oven access
▪ 304 stainless steel ‘cool touch’ door handles
▪ Suits 2/1 Gastronorm size trays
▪ Chrome oven rack supports with 4 positions
▪ Supplied with 2 oven racks
Overall Construction

▪ Heavy duty construction
▪ Welded 1.2mm 304 stainless steel front hob
▪ Front, side & door panels 0.9mm 304 stainless steel
▪ Splashback 1.2 mm 304 stainless steel
▪ Stainless steel feet with 55mm height adjustment range
▪ Secondary catchment tray 0.9mm stainless steel
▪ Modular Professional series design
Dimensions

▪ 900mm x 800mm x 1100mm H
▪ Working height 900mm
▪ Weight 179kg
▪ Packed dimensions 940mm x 860mm x 1260mm H
▪ Packed weight 204kg
Connections

▪ Gas 3/4” BSP male
▪ 180mm from right, 50mm from rear, 140mm from floor
▪ Supplied with Natural gas regulator
Cleaning & Servicing

▪ Removable burner hoods and spillage bowls
▪ Secondary undertray to catch any additonal waste
▪ Oven racks, supports and sole plate easy to remove
▪ Easy access to all parts & components from front
