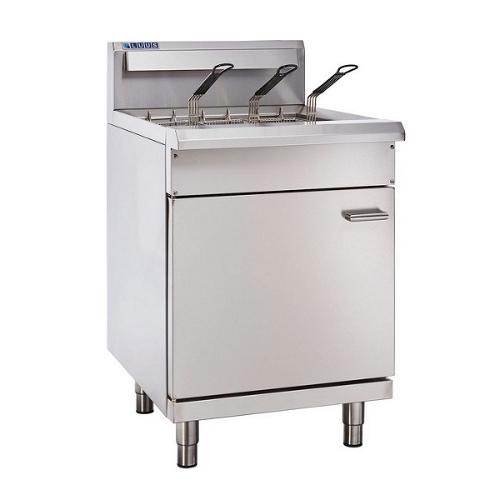

Luus Professional Series 3 Basket Single V-Pan Fryer (Order In Item)

The Luus Professional Series 3 Basket Single V-Pan Fryer is designed to deliver precision and power. With a 120mj jet burner, Fenwal thermostat valve, and high temperature cut-out safety mechanism, this fryer delivers consistent performance. Constructed with heavy duty 0.9mm 304 stainless steel throughout, it features a 25 litre tank capacity, 3 stainless steel fryer baskets, and a 0.9mm stainless steel perforated fish/base plate. Enjoy consistent results with the Luus V-Pan fryer.


▪ 120mj jet burner with pilot, FFD and piezo ignition
▪ Fenwal thermostat valve with +/- 1° C tolerance
▪ Thermostat temperature range 150 - 200° C
▪ High temperature cut-out safety mechanism
▪ 304 grade 1.5mm stainless steel tank
▪ 25 litre tank capacity
▪ Includes 3 stainless steel fryer baskets
▪ 0.9mm stainless steel perforated fish/base plate
▪ Tank drainage valve at bottom front of unit Overall Construction
▪ Heavy duty construction
▪ Constructed 0.9mm 304 stainless steel door
▪ High density Fiberfrax Durablanket insulation around tank
▪ Welded 1.2mm 304 stainless steel front hob
▪ Front and side panels 0.9mm 304 stainless steel
▪ Splashback 1.2 mm 304 stainless steel
▪ Includes stainless steel legs
Dimensions

▪ 600mm x 800mm x 1100mm H
▪ Working height 900mm
▪ Weight 83kg
▪ Packed dimensions 640mm x 860mm x 1260mm H
▪ Packed weight 103kg
Connections

▪ Gas 3/4” BSP male
▪ Gas 225mm from right, 50mm from rear, 210mm from floor
▪ In-built gas regulator (specify Nat or LP on order)
▪ Drain 1 1/4” BSP male
▪ Drain 300mm from left, 70mm from front, 385mm floor

Product Features

▪ Product Series: Professional
▪ Energy Consumption: 120MJ
▪ Dimensions: 1100Hx600Wx800D mm
▪ Weight: 83KG
▪ Warranty: 15 Month
