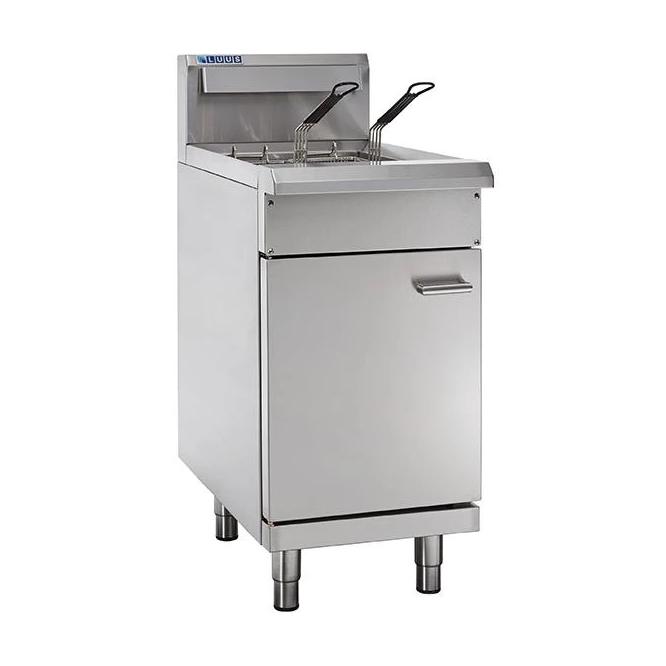

Luus FV-45 Professional Series 2 Basket Single V-Pan Fryer (100mj LPG) 450x800x1100high 72kg (Order in item)

FV series fryers feature an easy to clean stainless steel “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models. 24 month ‘Platinum Warranty’

Product features

▪ V-Pan Fryer
▪ 100mj jet burner with pilot, FFD and piezo ignition
▪ Fenwal thermostat valve with +/- 1° C tolerance
▪ Thermostat temperature range 150 - 200° C
▪ High temperature cut-out safety mechanism
▪ 304 grade 1.5mm stainless steel tank
▪ 20 litre tank capacity
▪ Includes 2 stainless steel fryer baskets
▪ 0.9mm stainless steel perforated fish/base plate
▪ Tank drainage valve at bottom front of unit
Overall Construction

▪ Heavy duty construction
▪ Constructed 0.9mm 304 stainless steel door
▪ High density Fiberfrax Durablanket insulation around tank
▪ Welded 1.2mm 304 stainless steel front hob
▪ Front and side panels 0.9mm 304 stainless steel
▪ Splashback 1.2 mm 304 stainless steel
▪ Includes stainless steel legs with 55mm adjustable range
Dimensions

▪ 450mm x 800mm x 1100mm H
▪ Working height 900mm
▪ Weight 72kg
▪ Packed dimensions 640mm x 860mm x 1260mm H
▪ Packed weight 92kg
Connections

▪ Gas 3/4” BSP male
▪ Gas 225mm from right, 50mm from rear, 210mm from floor
▪ In-built Natural gas regulator
▪ Drain 1 1/4” BSP male
▪ Drain 225mm from left, 70mm from front, 385mm floor
