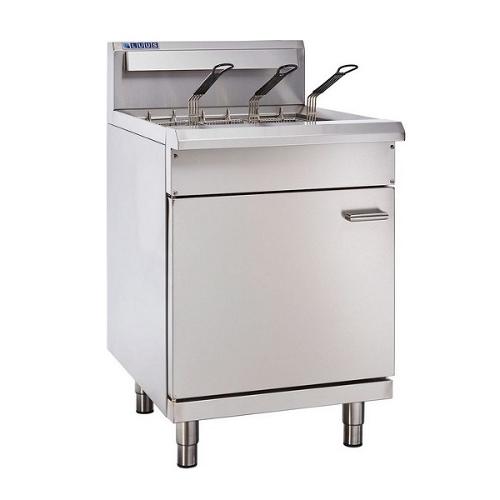

Luus FSV 450mm Split Pan Fryer (Order In Item)

The Luus FSV 450mm Split Pan Fryer is optimal for commercial kitchens needing precision and speed. With two 50MJ/h jet burners, thermostats, and a high temperature cut-out safety mechanism, you can count on consistent frying results. It also features a large cool zone and efficient multi-jet burners for superior performance and recovery. Includes two 11.5 litre fry pots with stainless steel fryer baskets.
LPG or Natural GasLUUS FSV-45 - 2 Basket Split V-Pan Fryer


▪ FSV series fryers feature an easy to clean stainless steel split
▪ “V-pan” tank with a large cool zone.
▪ Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.
Split Pan Fryer

▪ 2 x 50MJ/h jet burners with pilot, FFD and piezo ignition
▪ Mechanically controlled thermostat
▪ Thermostat temperature range 100 - 200° C
▪ High temperature cut-out safety mechanism
▪ 1.5mm stainless steel stud weld efficient tank design
▪ 2 x 11.5 litre fry pot capacity
▪ Includes 2 stainless steel fryer baskets
▪ 0.9mm stainless steel perforated fish/base plate
▪ Tank drainage valves at bottom front of unit
Overall Construction

▪ Heavy duty construction
▪ 0.9mm 304 stainless steel double-skinned door
▪ High density Fiberfrax Durablanket insulation around tank
▪ Welded 1.2mm 304 stainless steel front hob
▪ Front panels 0.9mm 304 stainless steel
▪ Side panels 1.2mm 304 stainless steel
▪ Splashback 1.2 mm 304 stainless steel
▪ Includes stainless steel legs with 55mm adjustable range
Connections

▪ Gas 3/4” BSP male
▪ Gas 225mm from right, 55mm from rear, 165mm from floor
▪ In-built gas regulator (specify Nat or LP on order)
▪ Drains 1 1/4” BSP male and 170mm in from both left and right, 200mm from front, 415mm from floor
Cleaning & Servicing

▪ Easy access to all parts & components from front
▪ Open pot easy-to-clean design
▪ Rear basket support bar
▪ Removable baskets and insert?
