DESCRIPTION

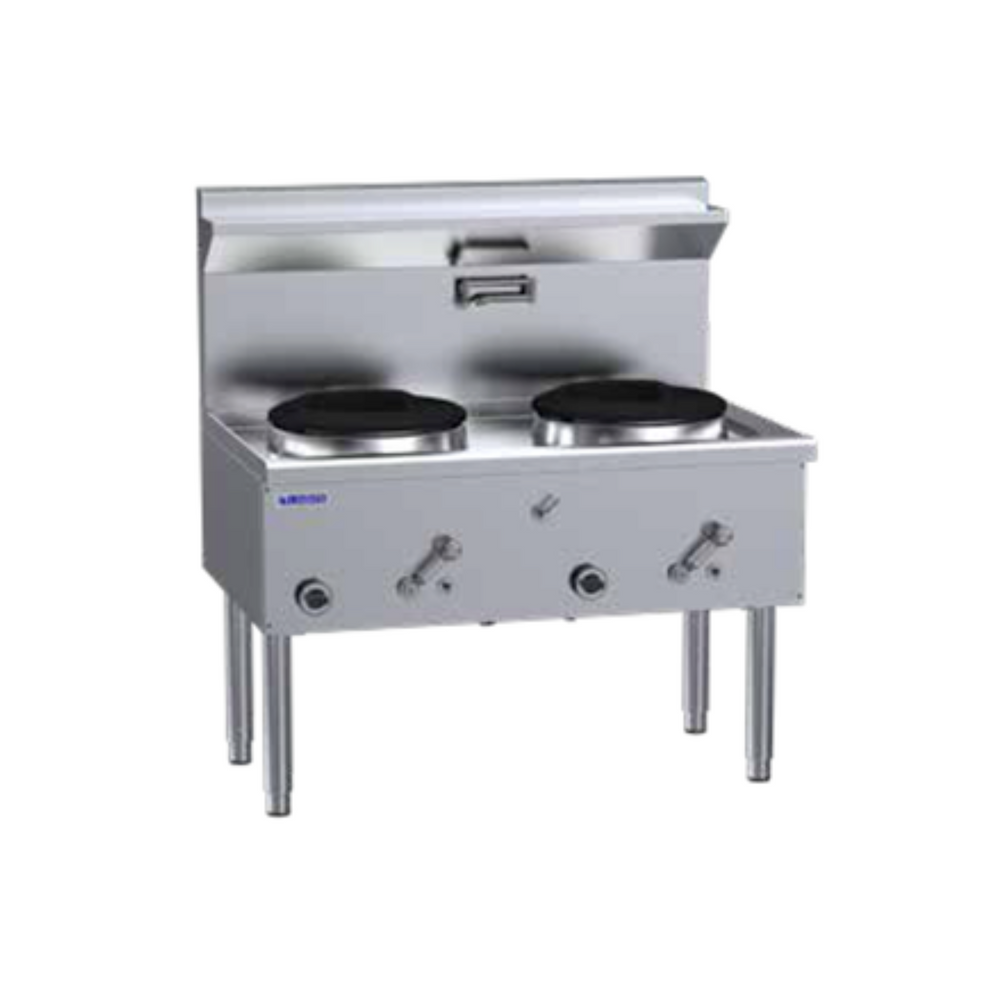

Two hole woks with Chimney burners as standard. Compact 800mm depth, air cooling, pressed ring, front gutter and quarter turn tap folding laundry arm operation.
Product features
▪ Heavy duty construction
▪ Full skirt, enamelled cast-iron rings
▪ 1.5mm 304 stainless steel one-piece pressed deck
▪ 0.9mm 304 stainless steel condiment shelf
▪ Splashback and front cover 1.2 mm 304 stainless steel
▪ Integrated hob 1.5mm 304 stainless steel
▪ Side panels 1.2mm 304 stainless steel
▪ Undertrays 0.9mm stainless steel
▪ Stainless steel removable legs
▪ 30mm height adjustment range
▪ Dimensions 1200mm x 800mm x 1300mm H
▪ Working height 800mm
▪ Weight 155kg
▪ Packed dimensions 1250mm x 900mm x 1470mm H
▪ Packed weight 190kg
▪ Gas 3/4” BSP female
▪ Gas 121/721mm from right, 84mm from rear, 425m to floor
▪ Supplied with gas regulator (specify Nat or LP on order)
▪ Water inlet 1/2” copper tube
▪ Water 61mm from right, 81mm to rear, 408mm to floor
▪ Drain 1 3/4” BSP male, drain outlet 2”
▪ Drain 122mm from left, 83mm from rear, 590mm to floor
▪ Easy access to all parts & components from front
